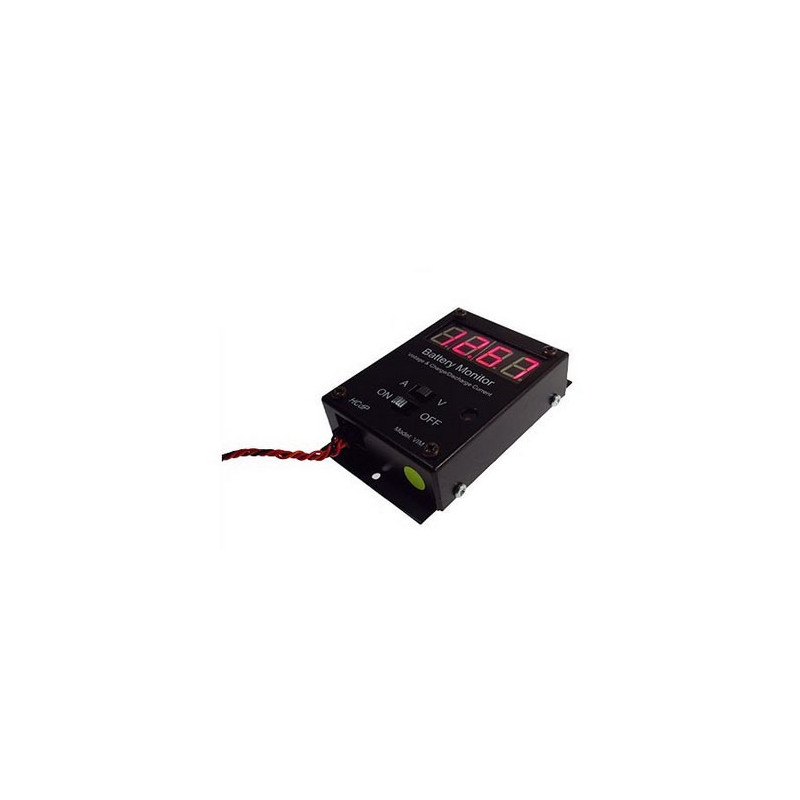

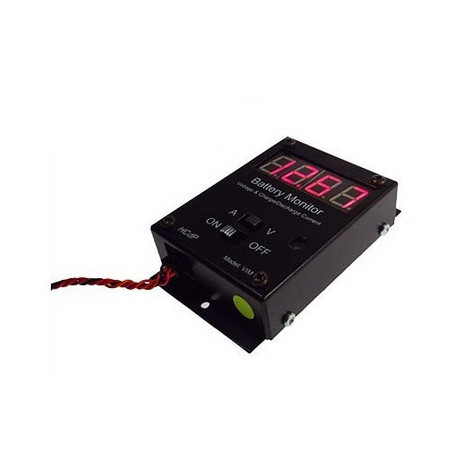

HCDP Digital battery monitor - Measures volts and amps
A voltage and amp monitor made by HCDP. Very easy to install.
- Battery Voltage Monitor (8V to 20V)
- Charge & Discharge Current Monitor (+/-20A)
- Accurate 3.5 Digit Display
- Large 14mm Character Height for easy reading
- Auto Brightness Adjustment
- Low Power Consumption
- Compact Powder Coated Housing
- Easy Installation
- Complete with Wiring and Mounting Screws
Below you'll find all the technincal specs for this battery monitor:
| Operating voltage | : | 8V to 20V |
| Voltage monitoring range | : | 8V to 20V |
| Voltage measuring accuracy | : | +/- 0.05V |
| Current monitoring range | : | +/- 20A |
| Current measuring accuracy | : | +/- 0.2A |
| Current draw when switched ON | : | 20mA to 40mA depending on ambient light |
| Shunt short circuit protection | : | 25A blade fuse |
| Shunt to monitor cable lenght | : | 3 meter |
| Dimensions | : | 96mm x 60mm x 22mm |
