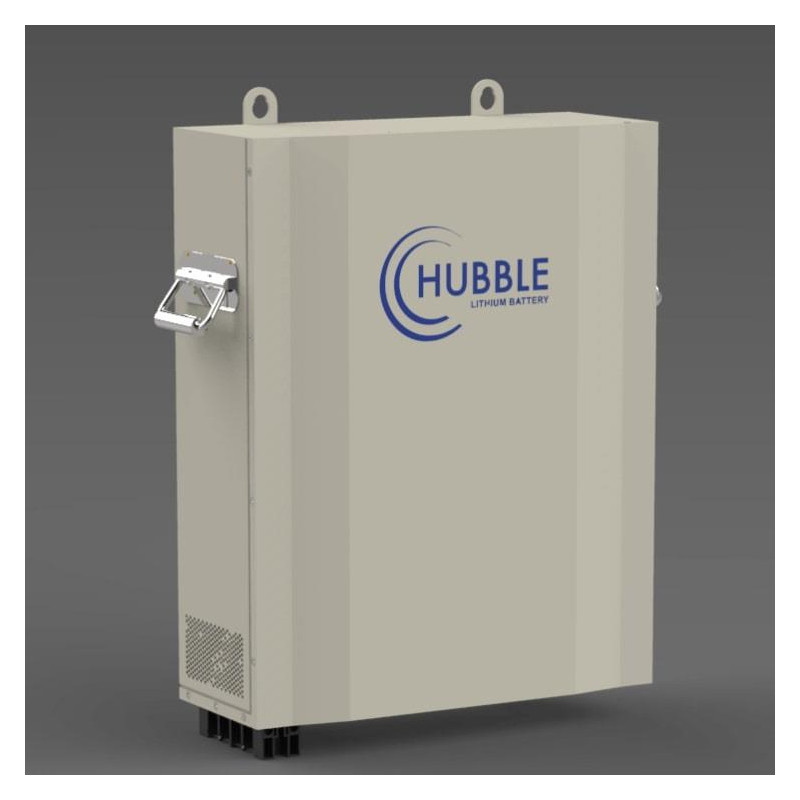

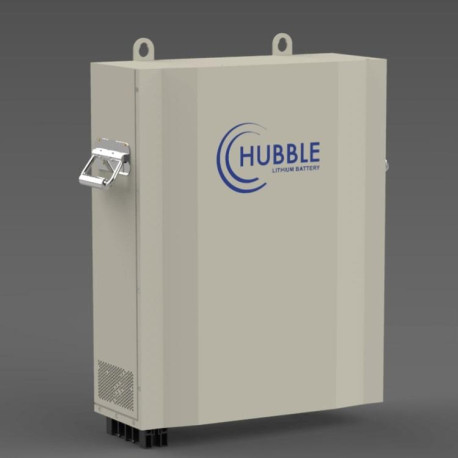

Hubble Lithium AM-2 Battery - 51V 5.5KW

The AM Series stands for Any Mount. This gives installers more flexibility to either rack mount in a standard server cabinet or wallmount the batteries.

The AM-2 is our new 5.5KWh 51Volt Lithium pack designed to be easily wallmounted or shelf installed in a standard rack.

Specification: 51V 5.5KWh
Rating: 1C
Parallel: up to 15 units per string

Extras: Battery Link & DC cables included
Internal Fire Suppression System: Yes

CAN Bus: Yes
Hubble Cloudlink Ready: Yes



ITEM SPECIFICATION Hubble AM-2 100 Ah 51.0 V 42.0 V 53.8 V 100 A 100 A 1.0 C Approx. 42 Kg None Parallel connection up to 15 packs with full communications 375mm x 145mm x 467mm 1x CAN-bus, 2x RS-485, 1x RS232 New Li-ion Prismatic Cells +/- 15 Years +/- 3000 Cycles @ 100% DOD, Above 6000 cycles @ 50% DOD CE, UN38.3, GBT31484-2015, GBT31485-2015, GBT31486-2015 White bake lacquer steel case Charging: 0 to +55°C Electronic Circuit Breaker, BMS Voltage Protection, Current Limiting
